Controller HX-2.0 optimized for machining centers / turning centers / cutting machines
1. HX-2.0 configuration
* HX2.0 is a CNC system optimized for high-precision automation equipment including milling, turning, grinding, and tapping.
* MDI configuration such as HX2.0 ST/MC can immediately meet user requirements.
2. SOFTWARE 사양 (800S, 900A, HX-Lite 공통)
* OS: WINDOWS XP Embedded, Windows 7 Embedded (optional)
* Language: Supports Korean, English, Chinese, Japanese
* Provides a motion API library for developing customer applications.
* For milling and engraving machines (MC), lathes (TC), and cutters (CUT)
* WINDOWS-based HMI: FANUC style CNC screen (Option), convenient shortcut button
* High-speed processing function through FEED FORWARD / LOOK AHEAD function
* 5-axis high-speed machining function, 5-axis tip control (optional)
* High-precision control function through friction, backlash, and pitch error correction
* 3D graphic path inspection and real-time processing path monitoring function
* Multi-axis servo synchronous control function
* Supports various PROGRAM FORMATs (G-code, DWG, DXF)
* Minimum setting unit 0.001mm, 0.001deg, 0.0001inch
* Up to 12 digit command possible (±99999999.999)
3. HX 2.0 Features
- User screen design possible by providing HMI Editor

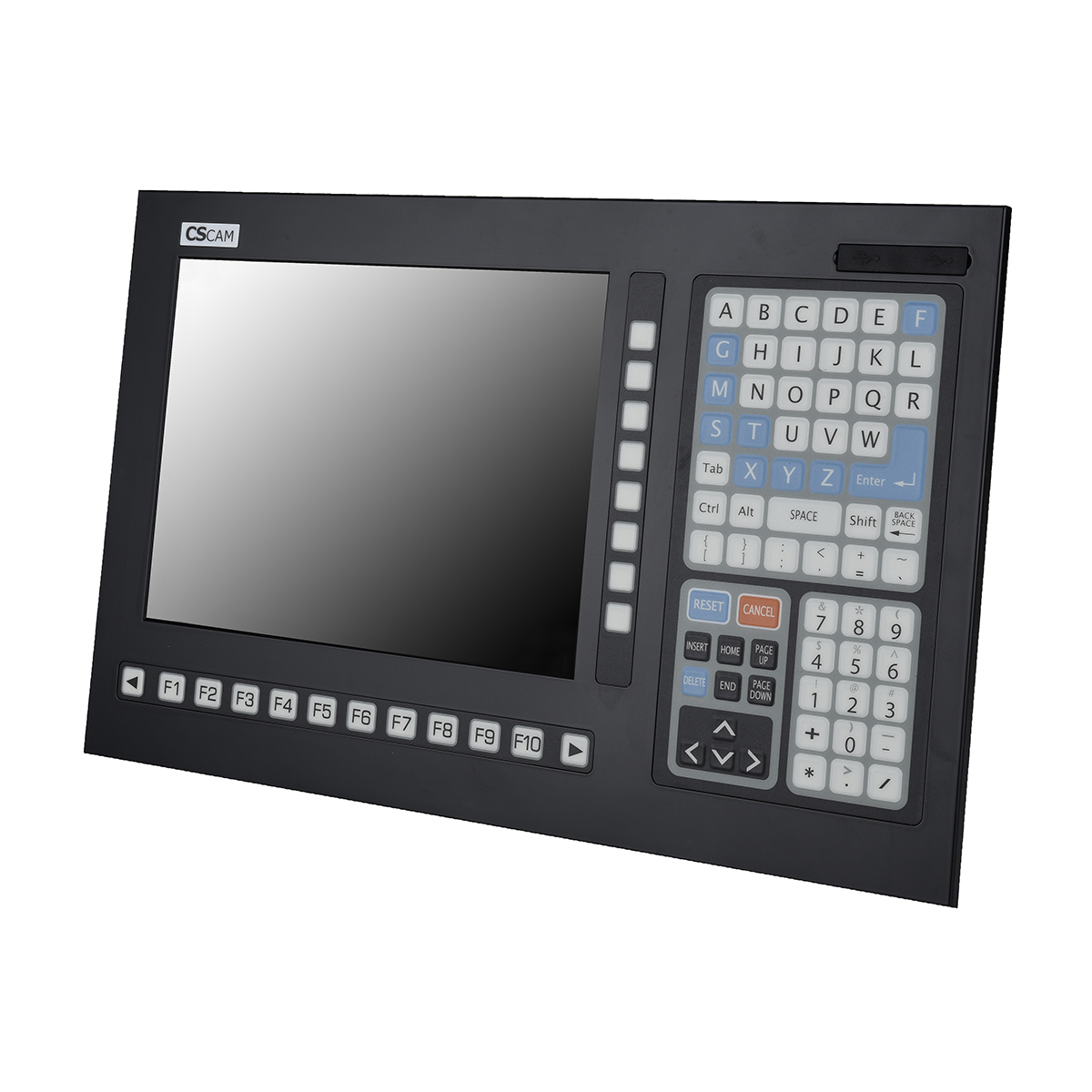

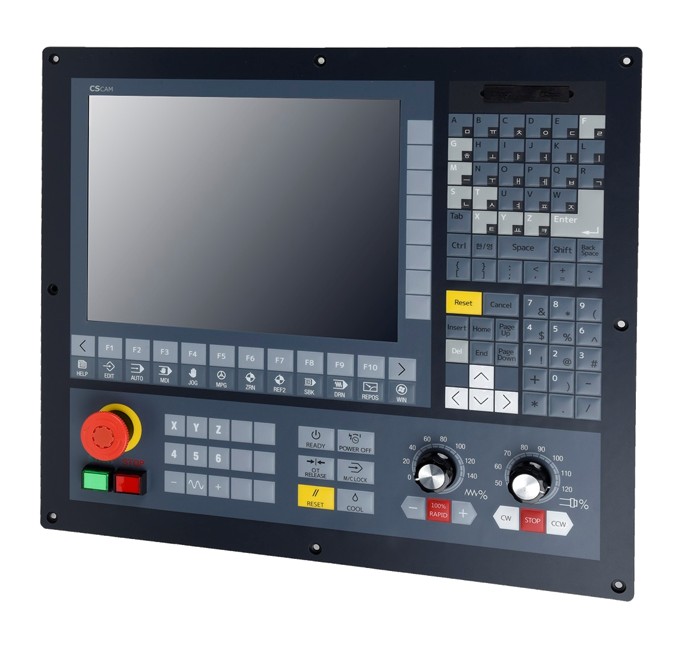

- MDI: ST type (basic type), MC type (including basic OP)
- Dedicated IO module for connecting OP panel and MPG (EDIO 72/46)
- Front USB 2 ports
- Touch screen (optional)
- Standard equipped keyboard
- EtherCAT communication support
- Analog servo connection possible
4. HX 2.0 specialized functions (common with 800S)
- Adoption of industrial servo communication EtherCAT - Look ahead, first look ahead block, basic 100 blocks (Max. 1000 blocks) - High-speed processing function provided as standard (G10.3) - Position control cycle minimum 0.5msec - You can select the desired type of MDI - Secure connectivity with all desired peripherals - Reduce processing time with TWIN TABLE function - Vision alignment function (GiB Ethernet CCD camera connection) - Supports multi-system control function - Rigid tapping function (Max. 5000rpm, M0.1~16) - 5-axis tip speed constant control, 5-axis tip control function | |
5. HX 2.0 application areas
6. HX 2.0 application video
Specifications
1. Peripheral device connection and function module
 |
Funtion module | Specification |
AIB3.0 | Analog servo 3 Axis, 6 Axis Pulse servo 3 Axis, 6 Axis DAC : For spindle command (+-10V) EtherCAT communication PWM (optional) |
EDIO72/46 | Digital Input/Output 72/46 contacts DAC : For spindle command (+-10V) QEP : Encoder pulse counter 2ch. (for MPG & Spindle) EtherCAT communication |
EDI32/EDO32 | Digital Input32/Output32 contacts Size : 130x40x20 EtherCAT communication |
2. CPU specifications
| CPU | Equipped with Intel Cel-1037U 2.3GHz, (Option: I5-3317U 2.6Ghz available) |
| DISPLAY | 10.4” Color TFT LCD(1024*768) |
| Number of control axes | Max.32 |
| USB PORT | 2 front USB2.0, 2 rear USB3.0, 2 USB2.0 |
| Serial port | (4 options available) |
| ETHERNET | GIGABIT ETHERNET 1-PORT (EtherCAT only 1PORT) |
| STORAGE | SSD 32GB ( Option 64GB, 256GB ) |
| MEMORY | DDR3 4GB, ( Option 8GB ) |
| Language | Korean, English, Japanese, Chinese, German |
