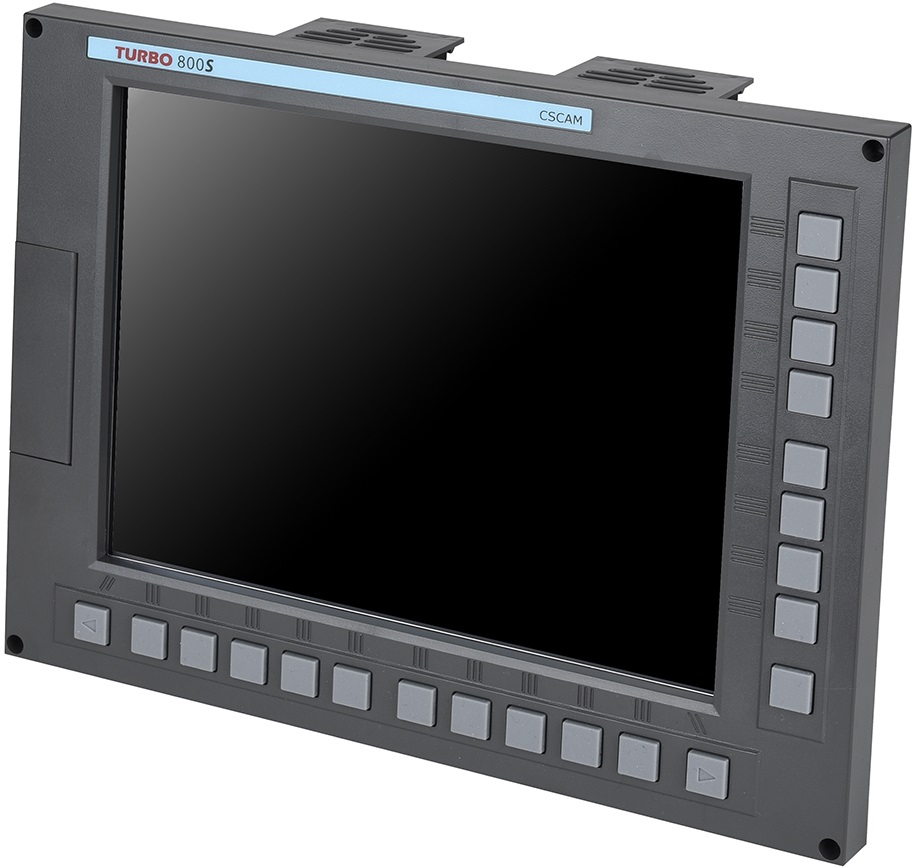

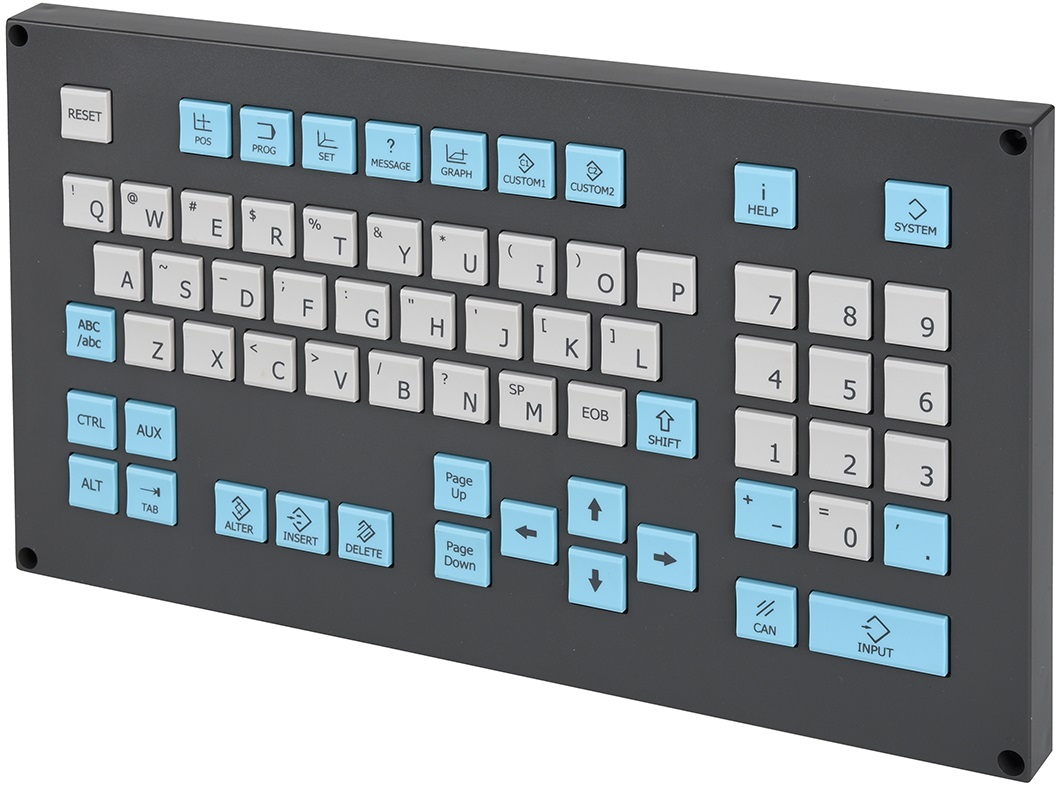

World-class 5-axis CNC controller TURBO 800S-5AX.

5-axis CNC controller with over 20 years of know-how in manufacturing and operating 5-axis machining machines
view list

Details

Do you want a world-class 5-axis CNC controller? This is 800-S 5AX.




1. Special features of 800S-5AX



 - 5-axis tip control







 - High-speed processing








 * High-speed processing function provided as standard (G10.3)

  -> Precision maintained with corner automatic deceleration function

  -> Smooth feed with S-shaped acceleration and deceleration

  -> Cutting speed limit function in R section

  -> Look ahead, basic 100 blocks

      (Max. 1000 blocks)

  -> Position control cycle minimum 0.5msec

  -> Supports simultaneous 5-axis high-speed machining










 - Multi-system control











Specifications

1. Peripheral device connection and function module




Function module

Specification

AIB3.0

Analog servo 3 Axis, 6 Axis
Pulse servo 3 Axis, 6 Axis
DAC : For spindle command (+-10V)
EtherCAT comunication
PWM (optional)

EDIO72/46

Digital Input/Output 72/46 contacts
DAC : For spindle command (+-10V)
QEP : Encoder pulse counter 2ch.
(for MPG & Spindle)
EtherCAT communication

EDI32/EDO32

Digital Input32/Output32 contacts
Size : 130x40x20
EtherCAT communication





2. CPU Specification


CPU
Equipped with Intel Cel-1037U 2.3GHz, (Option: I5-3317U 2.6Ghz available)
DISPLAY
10.4” Color TFT LCD(1024*768)
Number of control axes
Max.32
USB PORT
2 front USB2.0, 2 rear USB3.0, 2 USB2.0
Serial port
(4 options available)
ETHERNET
GIGABIT ETHERNET 1-PORT (EtherCAT only 1PORT)
STORAGE
SSD 32GB ( Option 64GB, 256GB )
MEMORY
DDR3 4GB, ( Option 8GB )
Language
Korean, English, Japanese, Chinese, German
