HX-LITE Series

Highest cumulative sales economic CNC

Economic CNC with PCI card type
4-axis only (±10V, 16bit resolution)
view list

Details




1. Hardware configuration


Commercial PC Utilization

LITE Card (PCI Type)

For dedicated PC

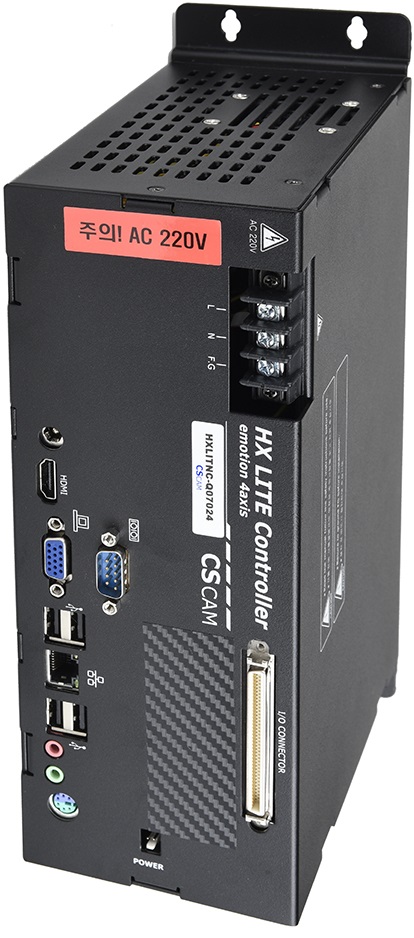

LTE PC (All-in-one Type)













 * User PC (PCI slot) and monitor available

 * User OS installation and setup






 * Industrial CPU, VGA output
   (general LCD monitor available)

 * Touch Screen (USB, PS/2, Option)

 * RS-232/485, 2xSATA

 * Supprot GbE Ethernet 2 port










2. NC Card



 - PCI Interface (Win Xp, Win 7)

 - Number of control axes: Max. 4-axis only (Analog output, ±10V, 16bit resolution)

 - Input/output contact: IO 40/32 (not expandable)

 - MPG x1 input

 - Spindle control: 1 axis (Analog output, ±10V, 16bit resolution)







3. Software



 - OS: Windows XP Pro/Embedded / Win7 supported

 - Supports HX-MC (for milling and engraving machines), HX-TC (for lathes), HX-CUT (for cutting machines), and HX-EDM (for electric discharge machines)

 - Language (Korean/English/Japanese/Chinese/German) support

 - Windows-based HMI: HMI Editor allows user-specific functions and screen configuration

 - Provided by PLC Editor

 - Provides high-speed/high-precision transfer function through feed forward/look ahead functions

 - Friction. High-precision control function through backlash and pitch error correction

 - 3D graphic path inspection and real-time processing path monitoring function

 - Multi-axis servo synchronous control function (Gantry, twin table control)

 - Supports various program formats (G code, DWG, DXF)

 - Minimum setting unit 0.001mm, 0.001deg, 0.0001inch

 - Up to 12 digit command possible (±99999999.999)





Specifications


1. NC UNIT Configuration



2. HX-Lite connection diagram





3. CPU 사양


CPU
Equipped with Intel Atom D252 1.8GHz
DISPLAY
HDMI, VGA(RGB)
Number of control axes
4 Axis
USB PORT
4 front USB2.0
Serial port
1
ETHERNET
GIGABIT 1-PORT
STORAGE
SSD 32GB ( Option 64GB, 256GB )
MEMORY
DDR3 2GB, ( Option 4GB )
Language
Korean, English, Japanese, Chinese, German
