2-axis tilting and rotary table - servo controllable
5-axis machining possible in addition to 3-axis equipment
Application possible for multi-joint robots, etc.
view list

Details

2-axis tilting & rotary table

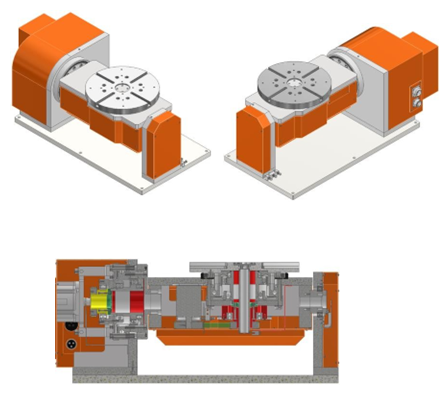

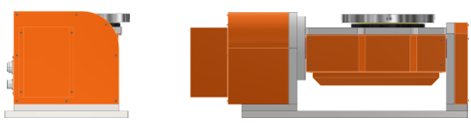

1. Unit Features



    * Tilting Axis

    - Tilt Motion: -90 º ~ +5 º

    - Home & Limit Sensor

    - Holow Shaft

    - Sub Axis

    - Amphenol Connector (2EA)


  * Rotate Table

    - Table Size: Φ 300mm (Φ 350mm)

    - ± 360 º Turning or Rotating

    - Home & Limit Sensor

    - Hollow Shaft

    - Max. Weight: 100kg (Tilting axis in 0 degree)

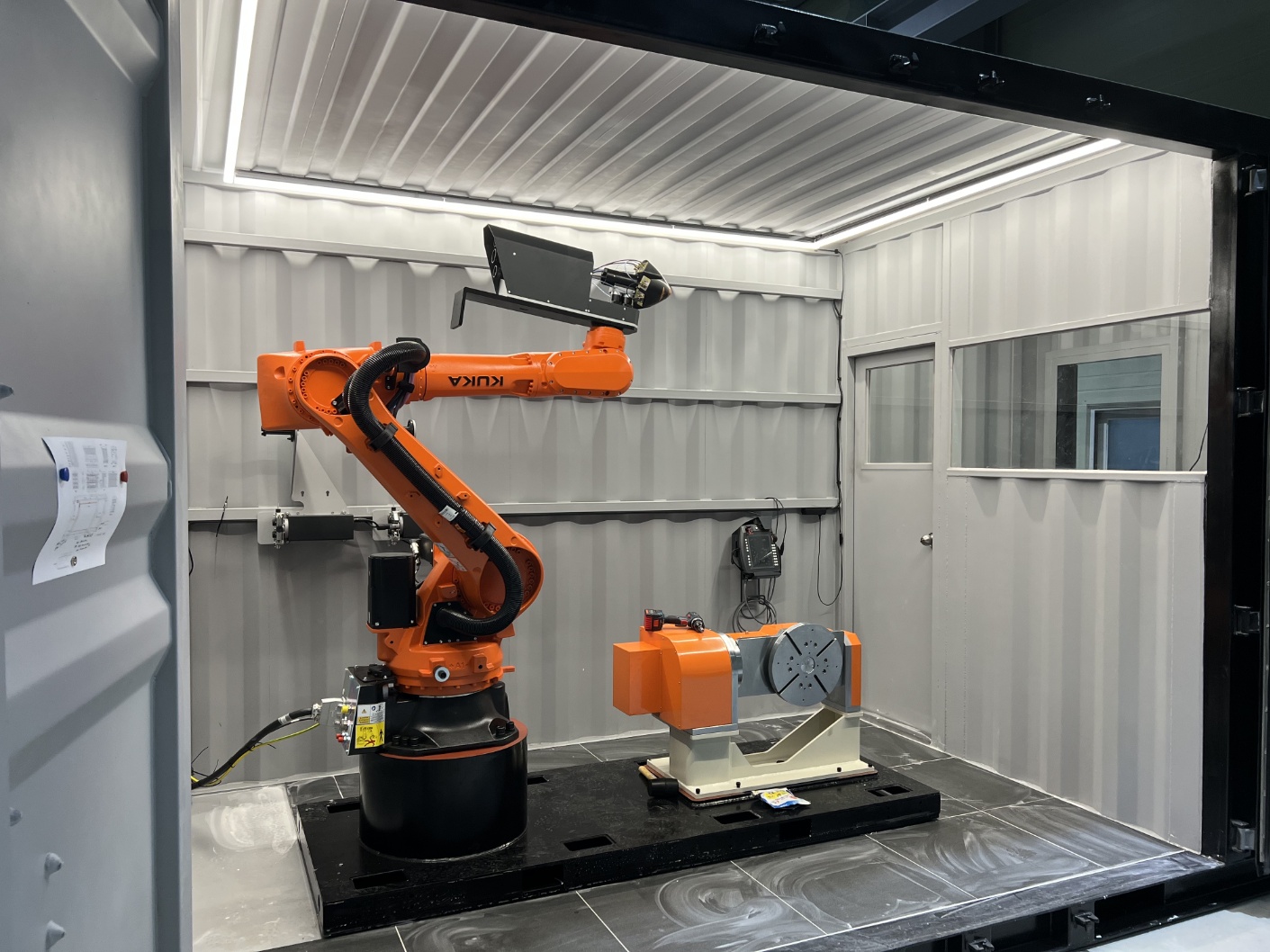

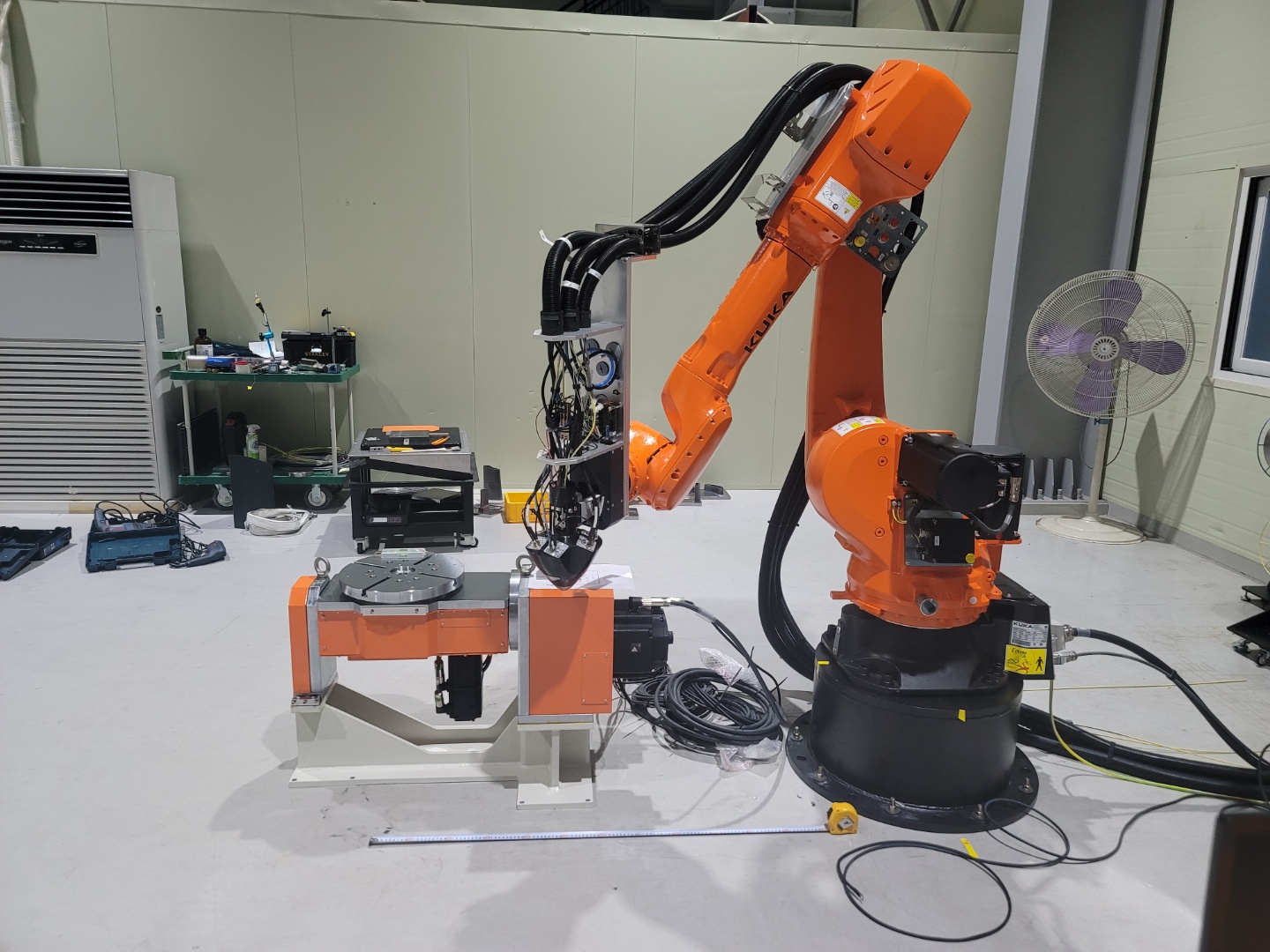

2. Application photos
