WHEEL FLOW FORMING M/C

Flow forming machine for automotive aluminum casting wheel forming
Passenger and commercial vehicle cast aluminum wheel hot forming equipment
Maximum forming capacity: 22 inches in diameter, 12 inches in rim width
view list

Details

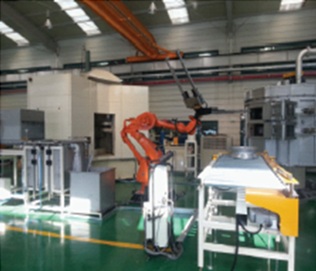

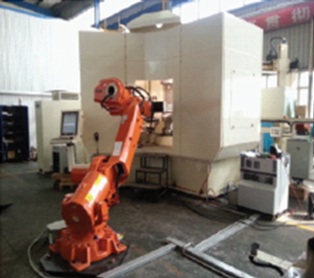

Flow forming machine WFF125-T3-A6 for automotive aluminum casting wheel forming





1. Features of WFF125-T3-A6





  * Hot forming equipment for cast aluminum wheels for passenger and commercial vehicles

  * Maximum forming capacity: 22 inches in diameter, 12 inches in rim width

  * 3-channel 2-axis synchronous control using 3 rollers

  * Precision control using hydraulic servo and linear scale

  * Gear-type main shaft structure adopted to minimize vibration

  * Shock mitigation during forming through self-driving rollers

  * Interface with other systems within the factory





Specifications



 ITEM SUB ITEM SPECIFICATION
 Classification
 Casted Wheel flow Forming Machine
 Designation
 WFF125-24-10-H
 Machine Spec. A Number of Axes  6 (2Axes X 3)
 A Number of Rollers  3 (Rough, Middle, Finish)
 Product Spec. Diameter 14-21inch
 Width 5-10inch
 Shape Customer
 Size Total 3,930 X 3,800 X 2,820mm (Frame)


 4,570 X 4,160 X 4,250mm (All)
 Stroke Longitudinal Axis  300mm
 Transversal Axis  500mm
 Tail Stock  550mm
 Power (Max.) Longitudinal Axis  200kN
 Transversal Axis  200kN
 Tail Stock  80kN
 Spindle Speed Maximum 800rpm
 Weight
 32,000kg
 Actuator Main Spindle Motor  200kw
 Hydraulic Pump  37kw
 Main Spindle Cooling Unit  2.2kw
 Main Spindle Oil Pump  0.75kw
 Hydraulic Unit  15kw
 Environment Temperature 0 ℃ - 35 ℃
 Humidity Under 80%
 Installation Space  Inside Factory
 Electric Utility A Source of Electric Power  AC 3Φ 380V 50Hz, 60Hz
 Electric Power Supply  AC 3Φ 380V 50Hz, 60Hz
 Operating Power Supply  AC 3Φ 220V 50Hz, 60Hz
 Electric Capacity  340KVA
 LNG Gas Utility Discharge 30㎥/Hr
 Pressure 0.5MPa - 1.0MPa
 Pneumatic Utility Discharge Over 500Nl/min
 Pressure 0.5MPa - 1.0MPa
 Cycle Time Single 22sec. (17inch X 7J Wheel)
 With Robot  40sec. (17inch X 7J Wheel)
 Constraint Cycle Time and Product Surface are Inverse Proportion
