2D CAD-based HMI

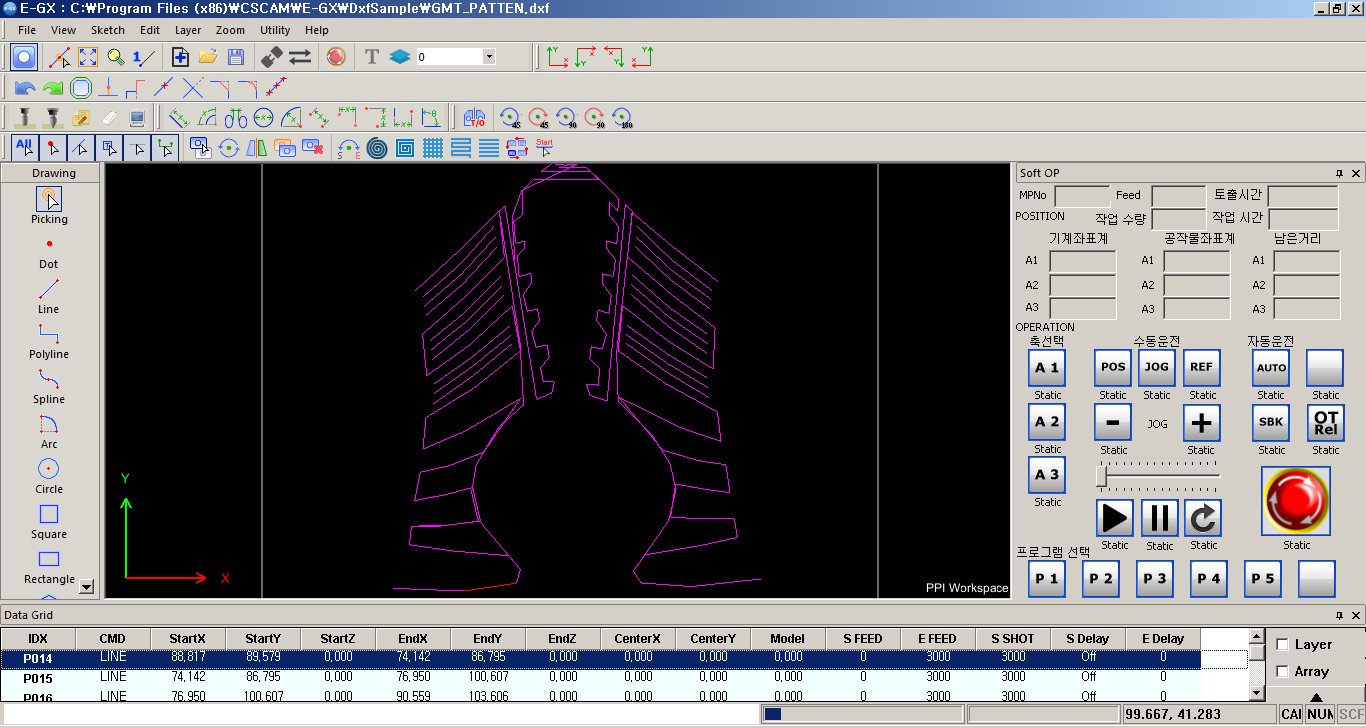

E-GXis software that allows you to easily operate the GXSeries with CAD data

  Application areas and examples

Specifications and Features

    - Equipped with its own CAD function (shape design and editing)

    - Automatically generate motion code after loading DXF file

    - NC data conversion function in G code environment

    - Real-time location display function

    - Change coordinates (position) by dragging the mouse

    - Utilization of dispenser robot equipment (Start/End Shot, S/E Time, S/E Feed, etc.)

    - Data transmission after communication connection of GX (controller)

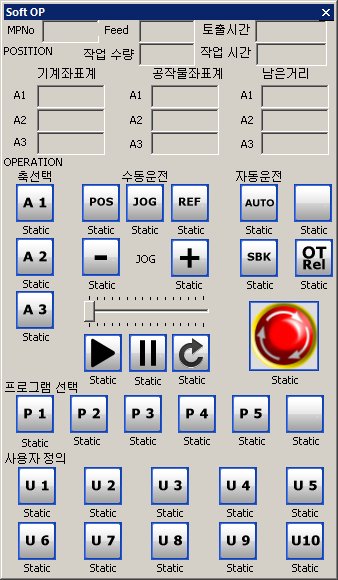

    - Robot movement can be controlled by running HMI

    - CAD screen can be used as HMI of GX

    - Simple paths are created through teaching, and complex continuous paths are created from CAD files to enable more accurate motion.

    - Easy USB (Ethernet, RS-232 available) communication

    - Automatic R insertion function at bending corners

    - Non-stop IO function (Application: Laser on/off during transfer, etc.)

    - Path data Excel file input/output function

    - DXF input/output function

    - Real-time route display
